| Nominale diameter | Max. diameter staalkabel | Max. diameter hennepkabel | Max. diameter synthetische koolstofvezelkabel | D | D1 | B | H | h | h1 | t | d | d1 | r | A | Schroeven | Gewicht (kg) | |
| Schroefdraaddiameter | Aantal (stuks) | ||||||||||||||||
| 50 | 8.7 | 75 | 16 | 50 | 65 | 135 | 190 | 8 | 85 | 6 | 25 | 35 | 25 | 85 | M16 | 4 | 2.8 |
| 75 | 11.5 | 90 | 20 | 75 | 75 | 185 | 290 | 12 | 135 | 7 | 42 | 52 | 35 | 115 | M22 | 4 | 8 |
| 100 | 13.5 | 100 | 24 | 100 | 100 | 235 | 350 | 18 | 160 | 7 | 50 | 65 | 40 | 155 | M27 | 4 | 15 |

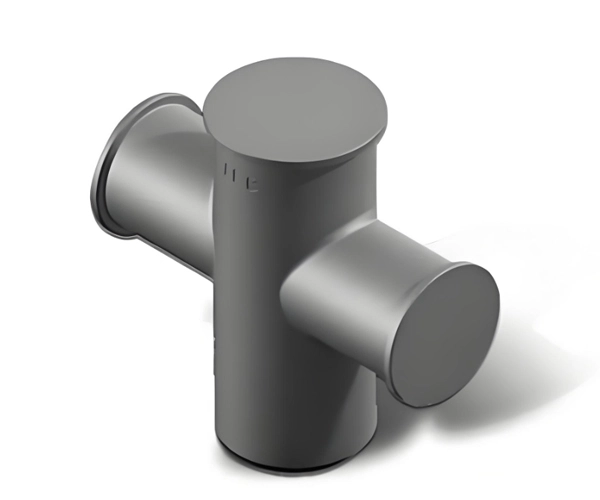

Productdetails:
1. Materiaal: Gietstaal, gietijzer
2. Nominale diameter: 50 mm, 75 mm, 100 mm;
3. Certificaat: CCS, ABS, LR, GL, DNV, NK, BV, KR, RINA, RS enz.
